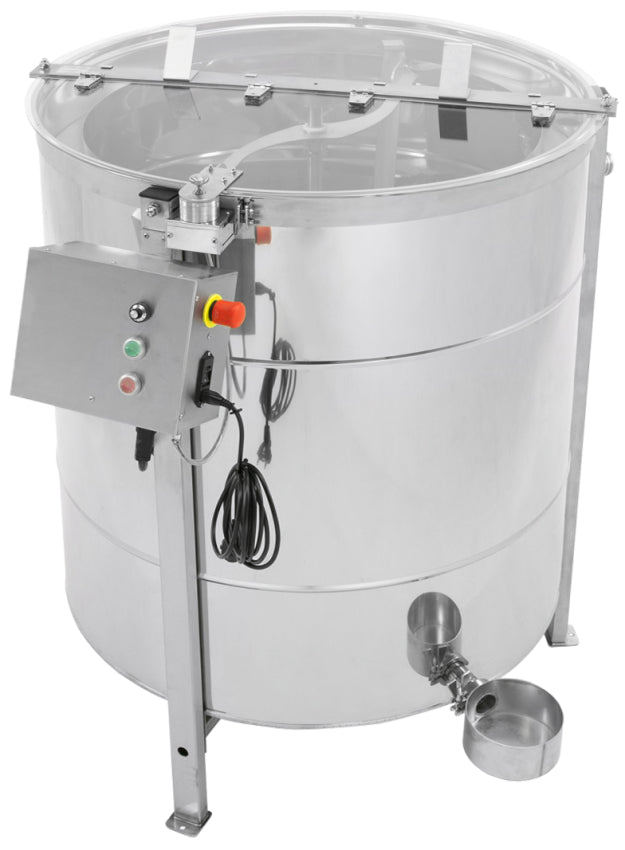

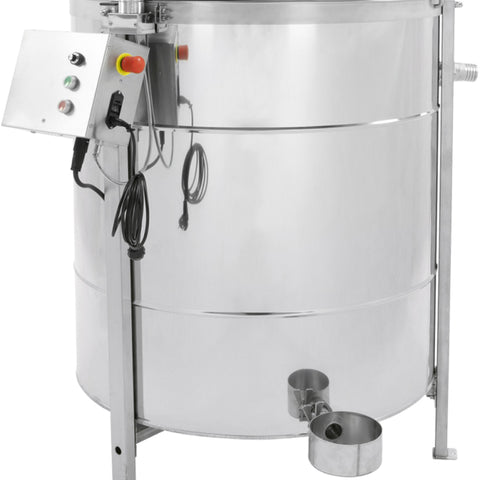

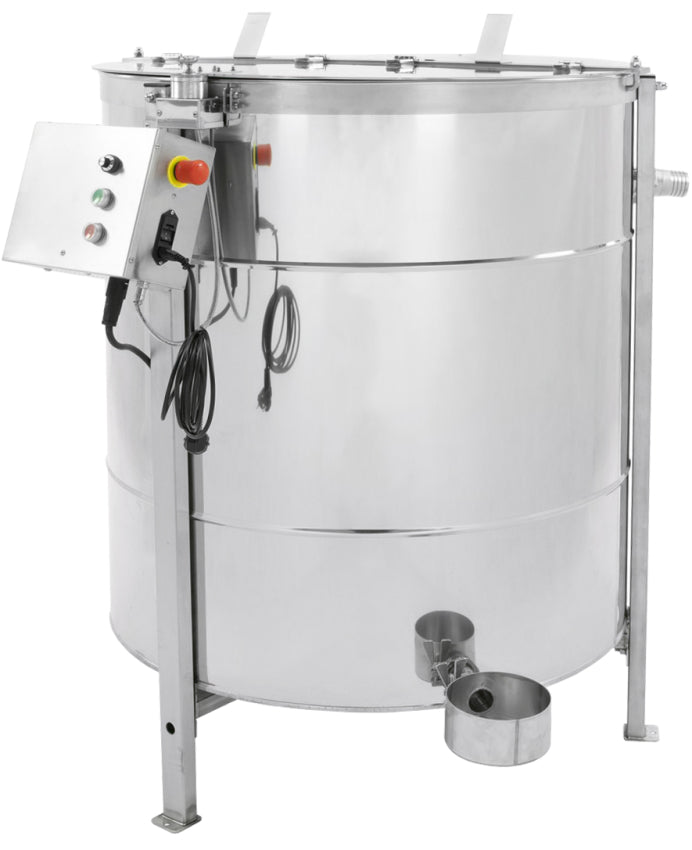

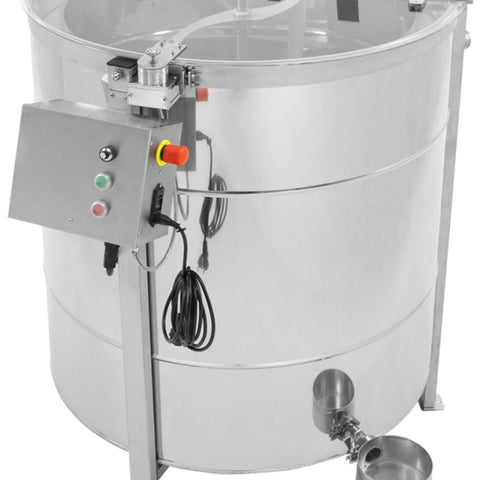

Bienomat Stainless Steel Honey & Wax Centrifugal Separator – 300kg/hr

The Bienomat Stainless Steel Honey & Wax Centrifugal Separator is a professional, high-capacity machine designed to efficiently separate honey from beeswax during the honey harvesting and extraction process. Featuring a powerful 550W motor, adjustable speed control and an impressive processing capacity of approximately 300kg per hour, this robust stainless steel separator is ideal for commercial beekeepers looking to maximise honey recovery, reduce waste and streamline their honey processing operations.

Product Description

The Bienomat Stainless Steel Honey & Wax Centrifugal Separator is designed to provide beekeepers with a fast, efficient and reliable solution for separating honey from beeswax, particularly when processing wax cappings produced during honey extraction.

Using centrifugal force, the machine separates honey from wax without the need for additional sieves, helping to simplify the separation process and reduce manual handling. With a processing capacity of approximately 300kg per hour, the Bienomat is particularly well suited to larger beekeeping operations and commercial honey processing facilities.

Manufactured entirely from high-quality stainless steel, the separator offers excellent durability, hygiene and ease of cleaning. Its sturdy construction is designed to withstand repeated use throughout busy honey harvesting periods, making it a valuable addition to any professional honey extraction setup.

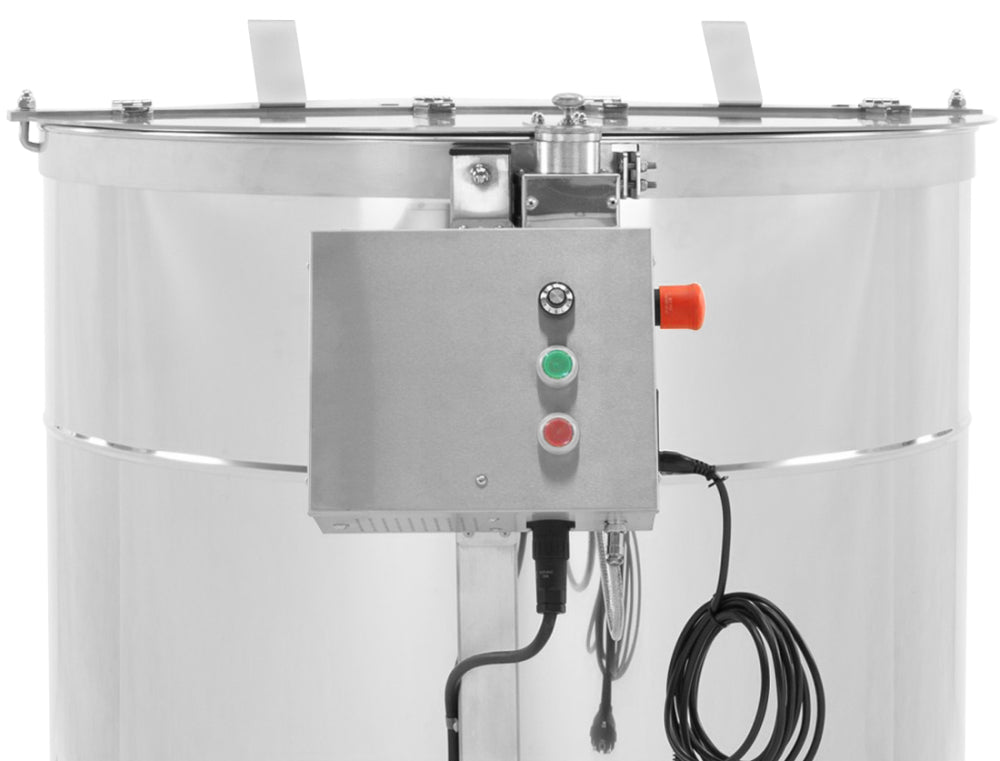

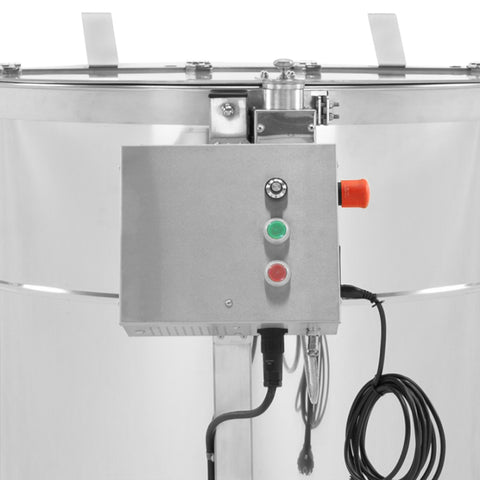

At the heart of the machine is a powerful 550W, 230V motor with a smooth-running underdrive system. The motor features continuously adjustable speed control, allowing the operator to select rotational speeds between 0 and 280rpm to suit different processing requirements.

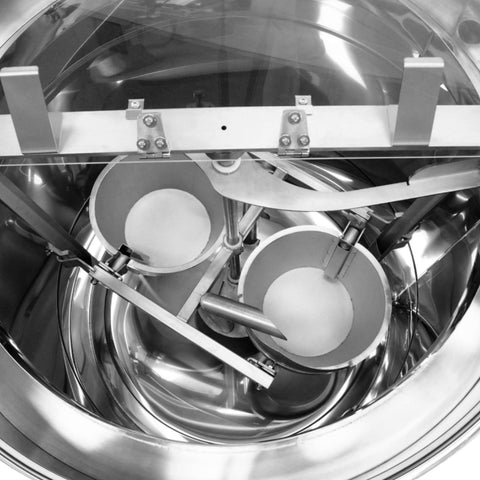

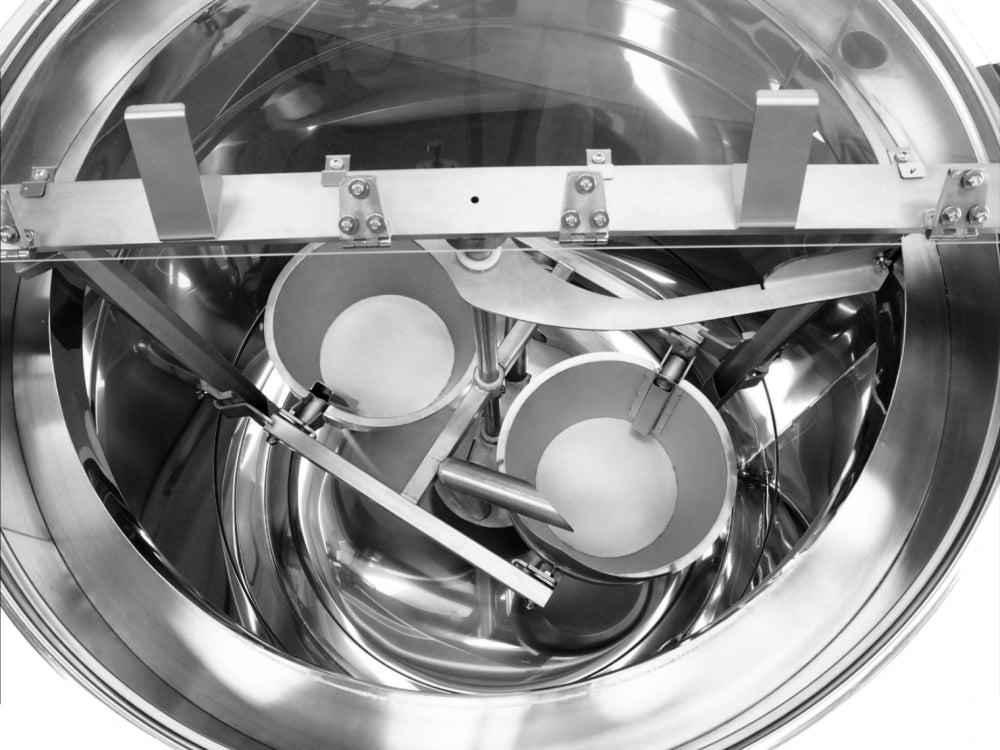

The machine incorporates two separation baskets, each measuring approximately 31.5cm × 14cm, along with two sturdy 10mm thick acrylic viewing lids. These provide a practical way to observe the separation process while keeping the working area enclosed.

For convenient loading, the Bienomat features a large 15cm diameter filling funnel positioned at an inlet height of approximately 35cm. This low inlet height makes the separator particularly suitable for positioning alongside a honey extractor, allowing honey and wax mixtures to be transferred conveniently during processing.

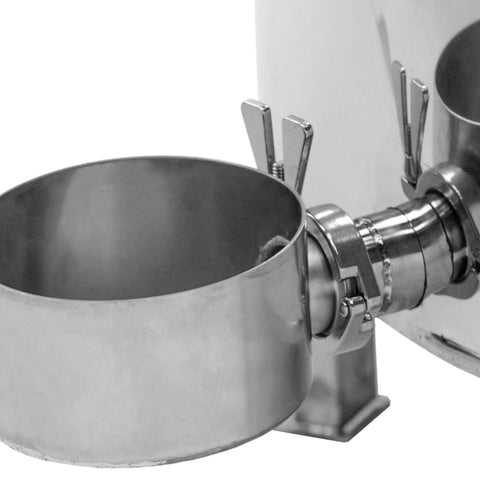

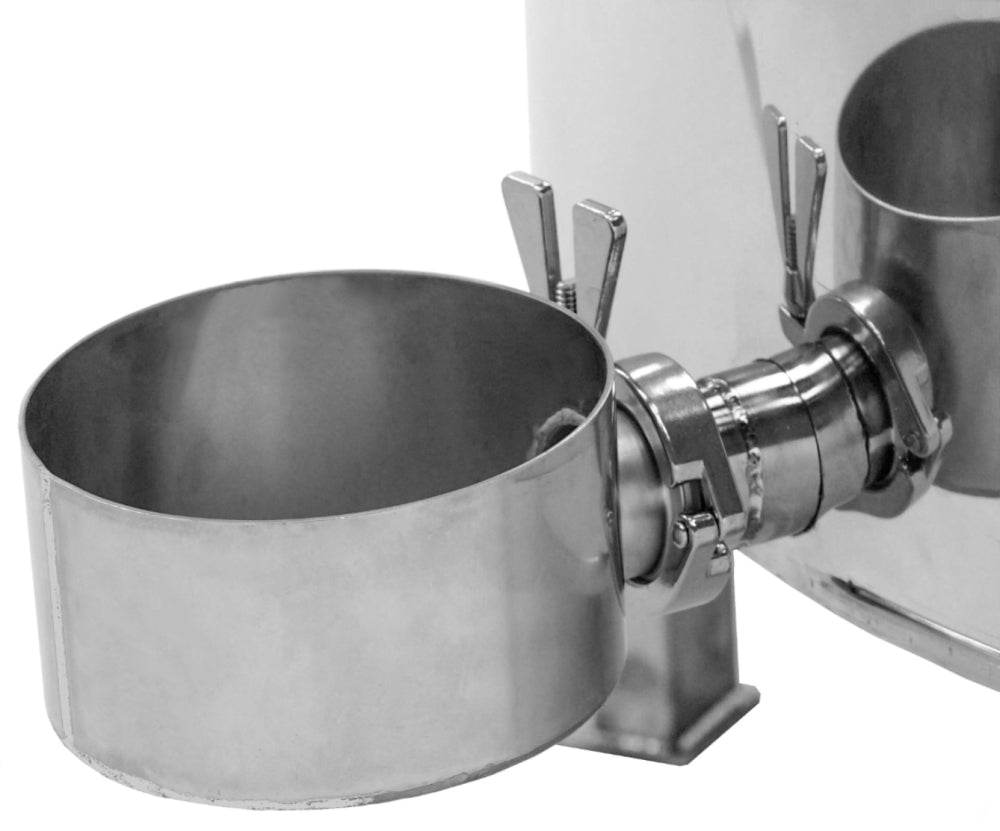

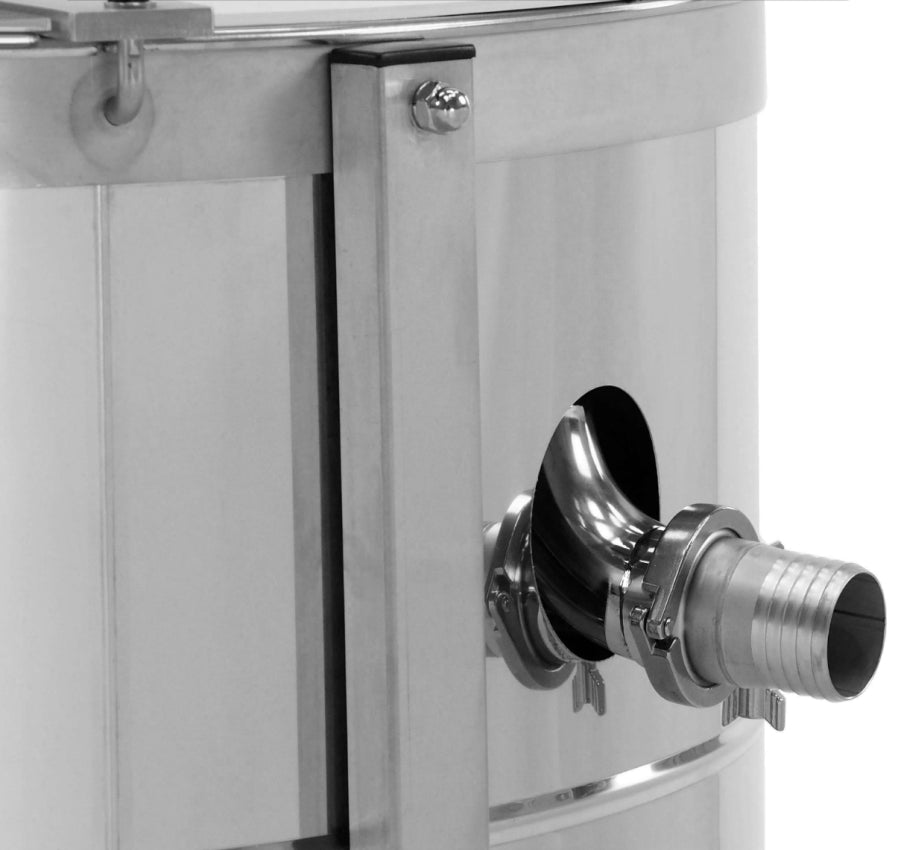

The machine is also equipped with two quick-release couplings for the inlet and outlet, allowing optional hoses with a diameter of 50mm to be connected. This provides additional flexibility when integrating the separator into an existing honey processing setup.

With an outlet height of approximately 98cm, the Bienomat can discharge separated honey into larger honey buckets, barrels or suitable collection containers.

Whether you're processing large quantities of uncapping wax or looking to improve honey recovery during extraction, the Bienomat Stainless Steel Honey & Wax Centrifugal Separator provides a powerful and practical solution for professional honey processing.

Features

• High Processing Capacity – capable of processing approximately 300kg of honey and wax mixture per hour.

• Centrifugal Separation System – efficiently separates honey from beeswax using centrifugal force.

• All Stainless Steel Construction – durable, hygienic and easy to clean for long-lasting performance.

• Powerful 550W Motor – smooth-running 230V underdrive motor designed for reliable operation.

• Variable Speed Control – continuously adjustable motor speed from 0 to 280rpm.

• No Additional Sieves Required – centrifugal separation eliminates the need for separate sieves during the separation process.

• Two Separation Baskets – fitted with two baskets measuring approximately 31.5cm × 14cm each.

• Heavy-Duty Acrylic Viewing Lids – two sturdy 10mm thick acrylic lids provide visibility during operation.

• Large Filling Funnel – 15cm diameter inlet for convenient loading of honey and wax mixtures.

• Low Inlet Height – approximately 35cm, making it suitable for positioning alongside a honey extractor.

• Quick-Release Hose Connections – two couplings allow optional 50mm diameter hoses to be connected.

• Raised Honey Outlet – approximately 98cm high, allowing larger buckets and barrels to be positioned underneath.

• Professional Quality Construction – designed for high-volume honey processing and commercial beekeeping operations.

Benefits

• Recovers valuable honey from wax cappings and honey-wax mixtures, helping to minimise waste.

• High processing capacity of approximately 300kg per hour makes it ideal for larger honey harvests.

• Centrifugal separation reduces the need for manual straining and additional separation equipment.

• Adjustable motor speed provides flexibility when processing different honey and wax mixtures.

• Durable stainless steel construction offers excellent reliability and easy maintenance.

• Low filling height allows convenient positioning alongside honey extractors.

• Raised outlet makes collecting separated honey in larger containers easier.

• Quick-release connections provide flexibility when integrating the machine into an existing honey processing system.

• Helps reduce manual handling and improve productivity during busy harvesting periods.

• Suitable for commercial beekeepers looking to maximise honey recovery and improve processing efficiency.

Uses

• Separating honey from beeswax cappings following the uncapping process.

• Recovering residual honey from honey and wax mixtures.

• Processing larger quantities of uncapping wax during honey extraction.

• Integrating into commercial honey extraction and processing systems.

• Collecting separated honey into buckets, barrels and suitable storage containers.

• Ideal for established beekeepers managing substantial honey harvests.

• Suitable for professional and commercial honey production facilities requiring efficient honey and wax separation.

Technical Specifications

• Brand: Bienomat

• Product: Stainless Steel Honey & Wax Centrifugal Separator

• Processing Capacity: Approximately 300kg per Hour

• Material: Stainless Steel

• Separation Method: Centrifugal Force

• Motor Power: 550W

• Voltage: 230V

• Motor Type: Smooth-Running Underdrive Motor

• Speed Control: Continuously Adjustable

• Rotational Speed: 0–280rpm

• Separation Baskets: 2

• Basket Dimensions: 31.5cm × 14cm Each

• Viewing Lids: 2 Acrylic Glass Lids

• Lid Thickness: 10mm

• Filling Funnel Diameter: 15cm

• Inlet Height: Approximately 35cm

• Outlet Height: Approximately 98cm

• Hose Connection Diameter: 50mm

• Quick-Release Couplings: 2

• Bowl Diameter: Approximately 96cm

• Overall Width: Approximately 130cm

• Overall Height: Approximately 132cm

• Weight: Approximately 94kg

• Operation: Electric, Variable-Speed Centrifugal Separation

What's Included

• 1 × Bienomat Stainless Steel Honey & Wax Centrifugal Separator

• 1 × Integrated 550W Motor with Variable Speed Control

• 2 × Separation Baskets

• 2 × Heavy-Duty Acrylic Glass Lids

• 1 × Filling Funnel

• 2 × Quick-Release Hose Couplings

Please Note

This machine is designed specifically for separating honey from beeswax using centrifugal force. It is particularly suitable for processing honey and wax mixtures produced during uncapping and honey extraction.

The stated processing capacity of approximately 300kg per hour is indicative and may vary depending on the consistency, temperature and composition of the honey and wax mixture being processed.

Optional 50mm diameter hoses are not confirmed as included and may need to be purchased separately if required for your processing setup.

Due to its substantial weight of approximately 94kg, the separator should be installed on a stable, level surface with adequate space for safe operation, loading and honey collection.

Always ensure the acrylic lids are correctly positioned before operating the machine. Never attempt to open or access moving components while the separator is running.

Clean all food-contact components thoroughly before first use and after each processing session, following the manufacturer's cleaning and operating instructions.

This machine does not include a honey heating system. It separates honey and wax mechanically using centrifugal force rather than heat.
