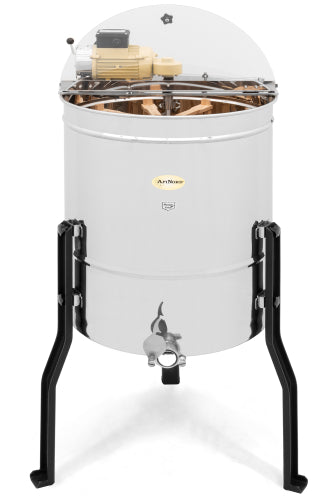

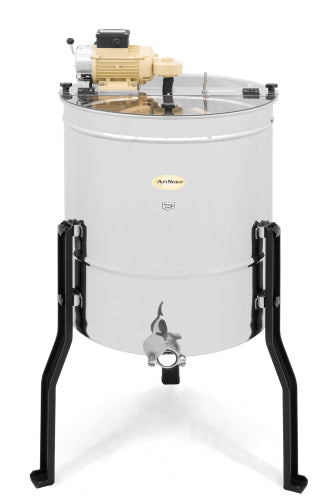

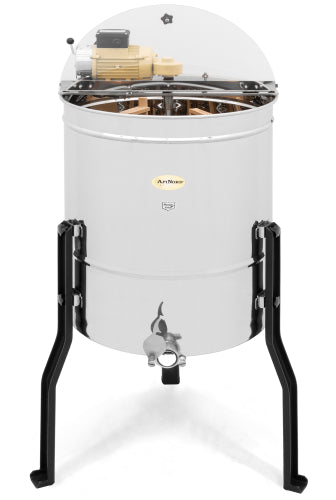

ApiNord 9/3 Frame Electric Radial & Tangential Honey Extractor – 52cm

The ApiNord 9/3 Frame Electric Radial & Tangential Honey Extractor is a versatile, high-quality honey extractor designed to make honey harvesting faster, easier and more efficient. Featuring a powerful 110W electric motor, continuously adjustable speed control and a dual-purpose extraction basket, this practical extractor can accommodate up to 9 shallow frames in radial mode or 3 deeper frames in tangential mode, making it ideal for hobbyist and established beekeepers working with different frame sizes.

Product Description

The ApiNord 9/3 Frame Electric Radial & Tangential Honey Extractor is designed to provide beekeepers with a reliable and efficient solution for extracting honey from a variety of frame types. Combining electric operation with a versatile dual-purpose extraction basket, this extractor offers excellent flexibility for beekeepers using different hive systems.

In radial mode, the extractor accommodates up to 9 shallow honey frames measuring a maximum of 185mm in height. This makes it suitable for shallow frames from a range of popular hive systems, including National, Zander, Langstroth, Dadant US and Dadant Blatt, provided the frames fit within the specified dimensions.

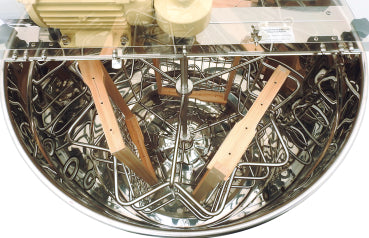

For greater versatility, the extractor can also be used in tangential mode by fitting the three supplied suspension grids. This allows up to 3 deeper frames, measuring a maximum of 305mm in height, to be extracted. Tangential operation is particularly useful for larger frames, including compatible Dadant US and Dadant Blatt frames.

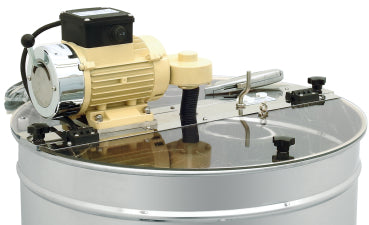

Powered by a 230V, 110W top-mounted electric motor, the ApiNord extractor features continuously adjustable speed control, allowing beekeepers to regulate the extraction speed to suit the frames and honey being processed. This provides greater control during extraction and helps reduce the risk of damaging delicate comb.

The extractor also features an integrated safety switch, providing an additional level of protection during operation.

One of its standout features is the seamless sloping base, which is fully inclined towards the stainless steel honey gate. This allows extracted honey to flow efficiently towards the outlet, reducing the amount of honey left behind and minimising waste.

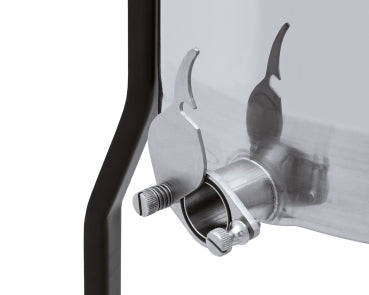

The stainless steel pinch tap is positioned flush with the base, with an outlet height of approximately 39.5cm, allowing honey to be conveniently collected in a suitable bucket or container.

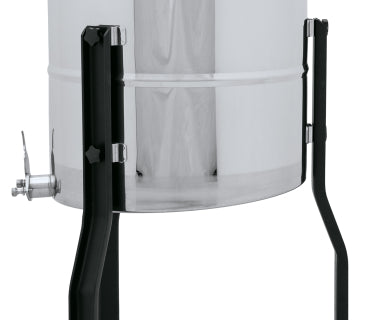

For ease of use, the extractor is fitted with a hinged lid that opens widely, providing convenient access when loading and unloading frames. Its sturdy three-legged construction provides a stable platform during extraction, even when processing heavier frames.

With a drum diameter of 52cm and an overall height of approximately 120cm, the ApiNord 9/3 Frame Honey Extractor offers a practical combination of capacity, versatility and compact design.

Whether you're extracting honey from National shallow frames or larger Dadant frames, this electric honey extractor provides a flexible and dependable solution for efficient honey harvesting.

Features

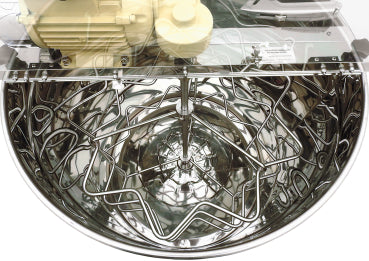

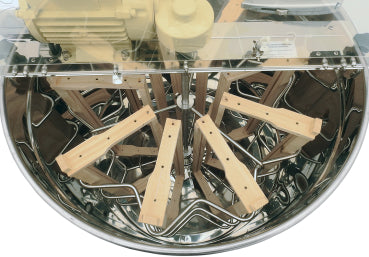

• Dual-Purpose Extraction Basket – suitable for both radial and tangential honey extraction.

• 9-Frame Radial Capacity – accommodates up to 9 shallow honey frames measuring a maximum of 185mm in height.

• 3-Frame Tangential Capacity – extracts up to 3 deeper frames measuring a maximum of 305mm in height.

• Three Tangential Suspension Grids Included – allows easy conversion between radial and tangential extraction.

• Powerful 110W Electric Motor – top-mounted 230V motor for reliable and efficient operation.

• Variable Speed Control – continuously adjustable speed settings for greater control during extraction.

• Integrated Safety Switch – provides additional protection during operation.

• Seamless Sloping Base – directs extracted honey towards the dispensing outlet for efficient drainage.

• Stainless Steel Pinch Tap – positioned flush with the base for controlled honey dispensing.

• Wide-Opening Hinged Lid – allows convenient loading and unloading of honey frames.

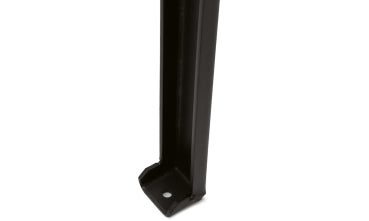

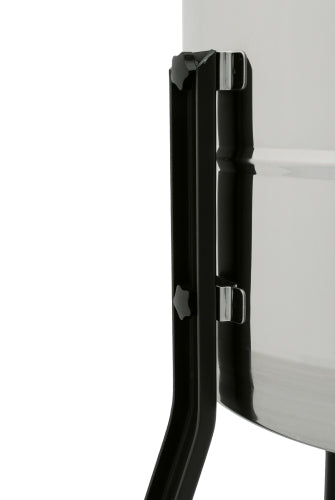

• Sturdy Three-Legged Construction – provides excellent stability during extraction.

• 52cm Drum Diameter – practical size suitable for a variety of beekeeping operations.

• Multi-Frame Compatibility – suitable for compatible shallow and deep frames from National, Zander, Langstroth and Dadant hive systems.

Benefits

• Dual-purpose design allows both shallow and deeper honey frames to be extracted using one machine.

• Radial extraction of up to 9 shallow frames helps reduce the number of extraction cycles required.

• Tangential extraction provides flexibility when processing larger frames.

• Electric motor eliminates the need for manual cranking, reducing physical effort during honey harvesting.

• Adjustable speed control allows gentler extraction of delicate or newly drawn comb.

• Sloping base helps ensure honey drains efficiently, reducing waste and minimising product loss.

• Stainless steel dispensing tap allows honey to be collected directly into suitable containers.

• Wide-opening hinged lid makes loading and unloading frames easier.

• Sturdy leg construction provides stability during operation.

• Compact 52cm drum diameter makes it suitable for smaller honey extraction rooms.

• Ideal for beekeepers using multiple hive systems or planning to expand their operations.

Uses

• Extracting honey from up to 9 compatible shallow frames using radial extraction.

• Extracting honey from up to 3 compatible deeper frames using tangential extraction.

• Processing honey frames from National, Zander, Langstroth, Dadant US and Dadant Blatt hive systems, subject to frame dimensions.

• Extracting honey from delicate comb using adjustable motor speed.

• Collecting extracted honey directly into buckets and suitable storage containers.

• Ideal for hobbyist and established beekeepers looking for a versatile electric honey extractor.

• Suitable for beekeepers managing multiple colonies or using different frame sizes.

Technical Specifications

• Brand: ApiNord

• Product: 9/3 Frame Electric Radial & Tangential Honey Extractor

• Extraction Type: Radial and Tangential

• Radial Capacity: 9 Shallow Frames

• Maximum Radial Frame Height: 185mm

• Tangential Capacity: 3 Deep Frames

• Maximum Tangential Frame Height: 305mm

• Tangential Suspension Grids: 3 Included

• Motor Type: Top-Mounted Electric Motor

• Motor Power: 110W

• Voltage: 230V

• Speed Control: Continuously Adjustable

• Safety Feature: Integrated Safety Switch

• Drum Diameter: 52cm

• Base Design: Seamless Sloping Base

• Honey Gate: Stainless Steel Pinch Tap

• Tap Position: Flush with the Base

• Outlet Height: Approximately 39.5cm

• Drum Body Height: Approximately 103.5cm

• Overall Height: Approximately 120cm

• Weight: Approximately 27kg

• Lid: Wide-Opening Hinged Lid

• Stand: Sturdy Three-Legged Construction

• Operation: Electric, Variable-Speed Honey Extraction

What's Included

• 1 × ApiNord 9/3 Frame Electric Honey Extractor

• 1 × Integrated 110W Electric Motor with Variable Speed Control

• 1 × Dual-Purpose Radial & Tangential Extraction Basket

• 3 × Tangential Suspension Grids

• 1 × Hinged Lid

• 1 × Stainless Steel Honey Gate

• 1 × Three-Legged Stand

Please Note

This honey extractor has a maximum capacity of 9 shallow frames in radial mode or 3 deeper frames in tangential mode. It cannot accommodate 9 deep frames simultaneously.

Maximum frame heights are 185mm for radial extraction and 305mm for tangential extraction. Always check the complete dimensions of your frames before purchasing to ensure compatibility.

The three suspension grids required for tangential extraction are included with the machine.

When extracting honey from newly drawn or delicate comb, begin at a lower speed and gradually increase the extraction speed to help prevent damage to the honeycomb.

For best results, distribute frames evenly within the extraction basket to maintain balance and reduce vibration during operation.

Always ensure the extractor is positioned on a stable, level surface before use. Never open the lid or attempt to access the extraction basket while the machine is running.

Clean all honey-contact surfaces thoroughly before first use and after each extraction session, following the manufacturer's operating and cleaning instructions.
